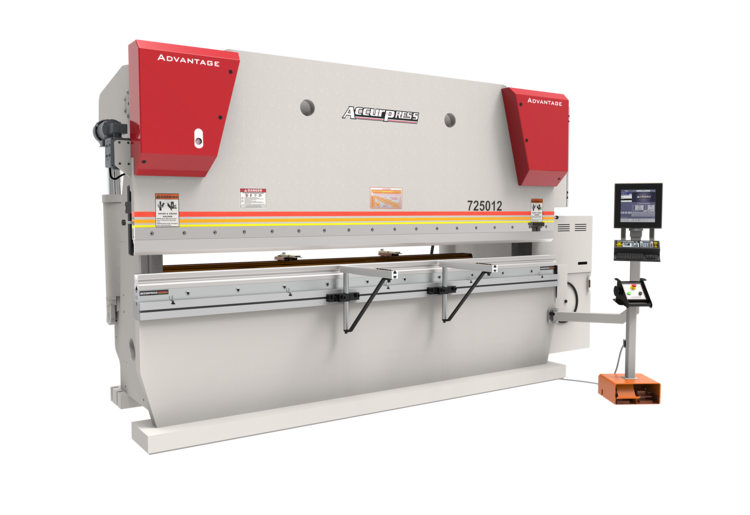

250 ton Accurpress Hydraulic Press Brake

Mazak Optiplex Nexus 3015 Fiber Laser
Rugged design. Intelligent controls. North American made.

The Accurpress Advantage Rocker Arm press brake has stood the test of time with thousands of machines shipped all over North America in a variation of tonnages from low to high and special customizations to maximize and facilitate forming jobs in sheet metal and heavy plate applications.

With 45 years of design experience Accurpress guarantees that these machines will stand up to your metal forming challenges.

All Accurpress press brakes are designed and built to high standards of lifetime durability and precision accuracy, backed with a minimum two-year warranty.


FEATURES

These standard features are what have made the Accurpress Rocker Arm
Hydraulic Press Brake so capable of handling a wide variety of application demands.

Unique Design:

The unique “Rocker Arm” Design of the Advantage machine has been tried and proven in a vast number of shops ranging from high precision sheet metal to heavy fabrication applications.

Power Ram Adjustment:

The Power Adjustment allows for fine adjustments of the ram level, optimizing ram/bed parallelism to match various tooling characteristics and doing fade out work. It is easily adjusted via pushbuttons located on the operator control station.


Forming Accuracy:

Accurpress Rocker Arm machines maintain consistently high repeat accuracy over years of dedicated usage; a testament to the quality and longevity of this machine. The optional Advantage Package adds a proportional valve and dual ram encoders which enhances the overall full length bending accuracy for off-center and stage bending applications.


Quality Components:

Accurpress adheres to the highest standards of workmanship utilizing hydraulic, electrical, and mechanical components recognized globally for their high quality and standards of perfection.


Tooling Compatibility:

The Accurpress Advantage is machined to accept American tooling or otherwise prepped for optional Hydraulic Clamping Systems integrated to the machine.

Upgrade Options:

Accurpress machines are built to last for many years of heavy usage. CNC Gauging, upgrades and various accessories may be added at later dates to meet production demands and/or challenging applications.

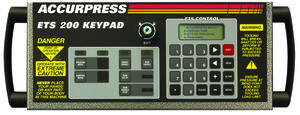

250 ton Accurpress Hydraulic Press Brake Advantage Controller
ETS (Electro Tech Systems) CONTROLLER

This simple and reliable controller comes standard for all Rocker Arm and Advantage machines.

Features:

  • Controls Ram and Backgauge X-Axis
  • 4 line LCD Display
  • 100 on Board Programs
  • 9 Steps per Program
  • Easily Set and Save Ram Positions
  • Tonnage Mode Programming

ETS3000 CONTROL UPGRADE

The ETS3000 Control offers an exceptional level of automation in press brake operation, producing significant time savings with its powerful and intuitive interface.

Features:

  • Touch Screen Control
  • Teach Mode Programming
  • Automatic Bend Sequencing
  • Complete Control over all Axis
  • Simple Bump Forming
  • Creates Programs in Just Minutes
  • Easy Angle and Flange Adjustments

250 ton Accurpress Hydraulic Press Brake Advantage Controller ETS3000 CONTROL UPGRADE

Designed for more than accuracy

Accurpress press brakes are designed from the ground up to be the most intelligent metal pressing machines on the market. Using a combination of Electric and Hydraulic drive systems to acheive the fastest cycle speeds on the Accurpress lineup, this baby will pump out more parts than the competition.
