Mazak Optiplex Nexus 3015 Fiber Laser

OPTIPLEX NEXUS 3015 FIBER

The OPTIPLEX NEXUS FIBER is a 2D flying optics fiber laser-cutting system that utilizes rugged construction and an innovative design to deliver high performance.

The NEXUS FIBER combines cutting-edge laser technology to deliver precision products for your business.

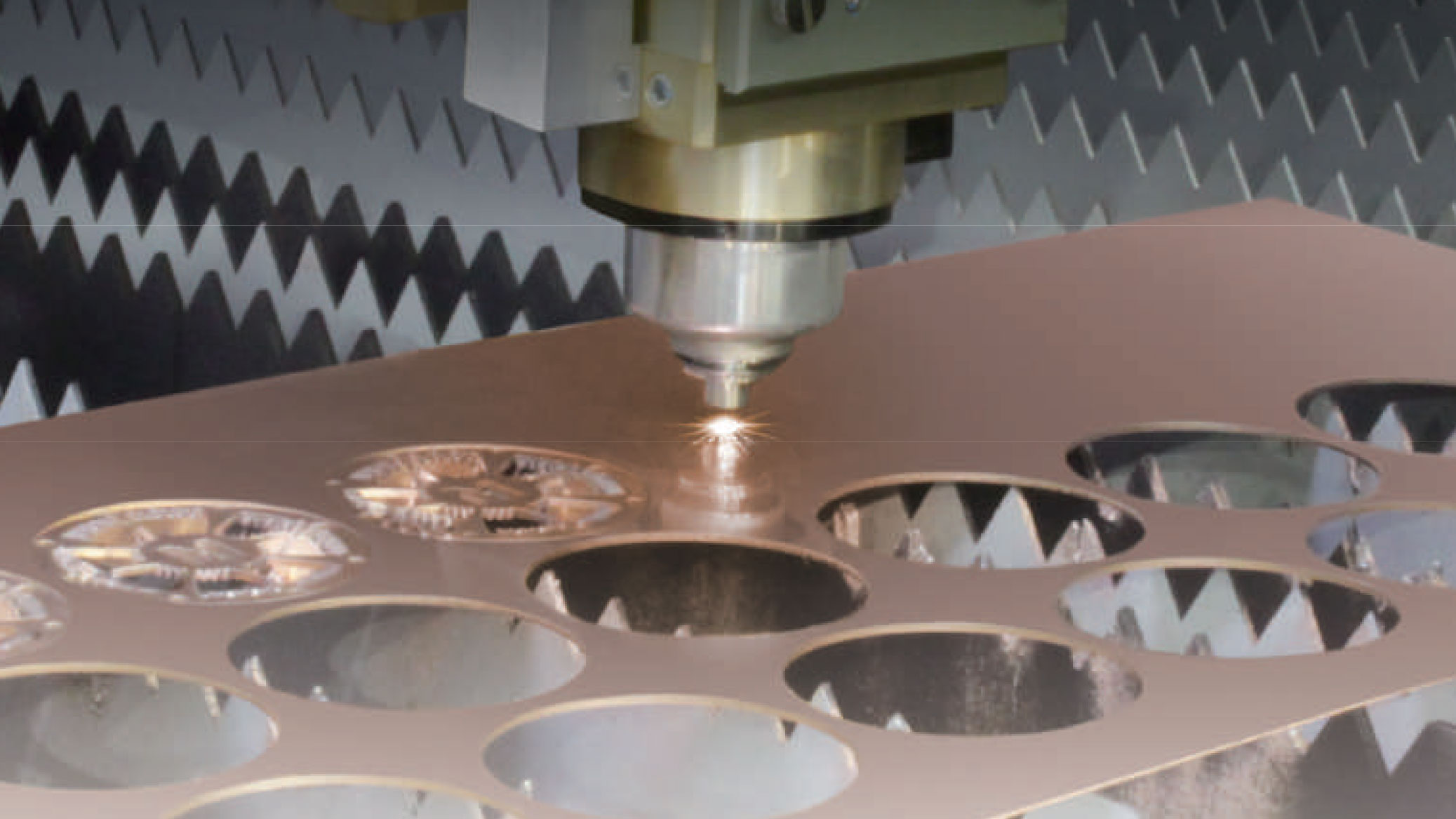

VERSATILE CUTTING PEFORMANCE OF THE FIBER LASER
  • Higher productivity when cutting thin to medium thickness material
  • Micro cutting – can only be done by the fiber laser
  • Stable cutting of highly reflective material such as copper, brass and aluminum
Mazak Optiplex Nexus 3015 Fiber Laser

INTELLIGENT TECHNOLOGY

Mazak's breakthrough Intelligent Technology includes the following intelligent functions that reduce operator dependency, improves cut quality and increases productivity.


INTELLIGENT SET-UP FUNCTIONS
  • Beam Diameter Control
  • Auto Nozzle Cleaning
  • Focus Detection
  • Auto Nozzle changing
  • Auto Focus Positioning
  • Auto Profilier Calibration
INTELLIGENT MONITORING FUNCTIONS
  • Pierce Detection
  • Plasma Detection
  • Burn Detection
  • Protection Window Sensing

INTELLIGENT CUTTING FUNCTIONS
  • Fine Power Ramping
  • Flash Cut

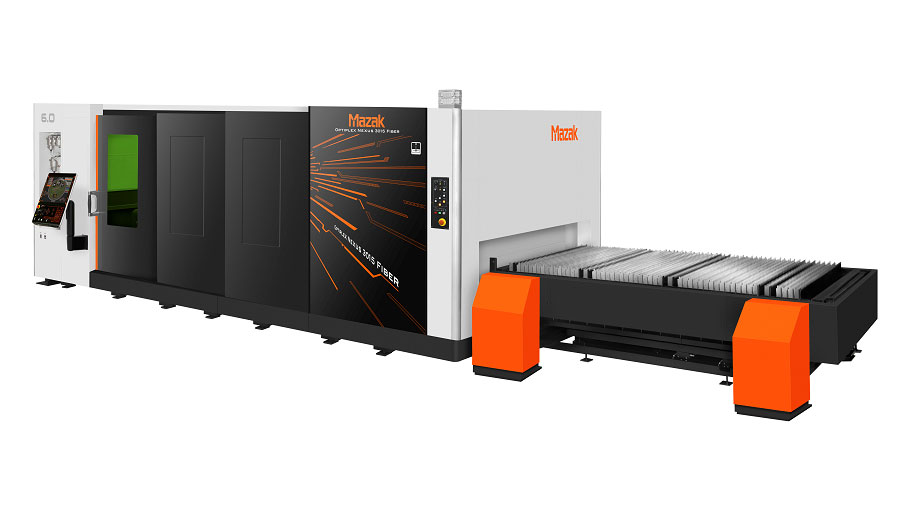

MACHINE DESCRIPTION

The OPTIPLEX NEXUS FIBER is a 2D flying optics fiber laser-cutting system that utilizes rugged construction and an innovative design to deliver high performance for fabrication job shops and production environments. The OPTIPLEX NEXUS FIBER offers a large side access door and flexible design that includes an automated 2 pallet design.


Mazak Optiplex Nexus 3015 Fiber Laser
PERFORMANCE ADVANTAGES
  • Designed to integrate Intelligent Setup and Monitoring Functions, the OPTIPLEX NEXUS 3015 FIBER delivers features normally available only on the highest technology machines. These features simplify operation and reduce operator dependency.
  • The durable 28,330 pound OPTIPLEX NEXUS 3015 FIBER incorporates a helical rack and pinion positioning system that features solid throughput and high accuracy.
  • The OPTIPLEX NEXUS 3015 FIBER has been engineered to be utilized with Mazak’s extensive range of automated material handling systems.
  • The PreviewG Control is a large 19" LCD touch screen which operates similar to a smart phone or tablet for increased ease of operation.
  • A 2 pallet changer design with a helical rack and pinion positioning system that features high through-put and rugged construction delivers a combination of performance and value.
  • Utilizing a fiber beam delivery system significantly lowers operating costs for applicable material thicknesses and types.
  • OPTIPLEX NEXUS 3015 FIBER is equipped with sensors in the Multi-Control Torch that monitor piercing and cutting operations to improve throughput and part quality. If an anomaly is detected, the operation is adjusted or paused to automatically achieve effective cutting conditions.

MACHINE SPECIFICATIONS
2D Specifications 6.0kW
Machine Structure Flying Optics
Maximum Workpiece Dimensions 60.039 in x 120.078 in
Maximum Workpiece Weight 2,050 lbs
Machine Travels
X axis
122.046 in
Y axis
62.20 in
Z axis
5.91 in
Work Table Height 35.43 in
Maximum Material Thickness
Mild Steel
1.000 in
Stainless Steel
1.000 in
Aluminum
0.750 in
Motion Drive System Design
X, Y axis
Rack and Pinion Drive
Z axis
Ball Screw Drive
Number of Control Axes 3
Rapid Travel Speed
X, Y axis
2,362 ipm (3,340 ipm 45o vector)
Positioning Accuracy
X, Y axis
0.0002 in/19.68 in
Z axis
0.0004 in/3.94 in
Repeatable Accuracy
X, Y axis
0.0012 in
Total Electrical Requirement 59 kVA
Installation Dimensions
W x D
330 in x 170 in
Machine Unit Dimensions
W x D x H
119.5 in x 392.1 x 95.3 in
Machine Unit Weight 28,330 lbs
CNC Type MAZATROL PreviewG
CPU 64 bit
Display Screen 19 in SXGA Color (TFT)
Memory Capacity 16 GB (program memory capacity: 1 GB)
Position Detection System Encoder
Minimum Command Unit 0.0001 in
Program Input System EIA/ISO
